XT-LINE AUTO DRY CABINETS

XT Line Auto Dry Cabinets offer 1250LT volume within three different drying technologies

XT LINE DESICCANT DRY CABINETS

X-Treme Series XT Line Desiccant Dry Cabinets have been specifically designed for drying and storing moisture sensitive devices (MSDs). According to IPC/JEDEC J-STD 033C ve IPC-1601 standards, moisture-sensitive materials and PCB’s can be stored in these cabinets for an unlimited period of time. XT Line Desiccant Dry Cabinets are suitable for medium and high-volume production due to cabinet dimensions also it can be used for baking (floor life resetting) purposes with optional heater units up to 100ᵒC degree. It is one of the most used cabinets due to its ergonomic structure and high volume. XT Line Desiccant Dry Cabinets are equipped with a patented drying unit DHM-01. The patented DHM-01 desiccant drying unit guarantees constant low relative humidity ≤0.5%RH for short to long-term storage thus oxidation risks associated with long term storage can be avoided. Ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies.

The drying unit of X-Treme Series Auto Dry Cabinets operating at very low humidity levels and optional heating units work together to provide a fast and healthy baking process at low temperatures for floor life resetting process. It provides a larger area and a more controlled drying environment compared to traditional ovens. Low-temperature baking prevents problems such as delamination, micro-cracks, popcorn affects, and solderability in MSDs (Moisture Sensitive Devices) arising due to high-temperature stress on the materials after baking in traditional ovens.

X-Treme Series Auto Dry Cabinets are ESD Safe and conforms to the current ESD 61340-5-1 standards with optional ESD-safe coating

External Dimensions (WxHxD):
1200 x 1990 x 750 mm
Internal Dimensions (WxHxD):
Non Insulated: 1197 x 1654 x 630 mm
Insulated: 1178 x 1634 x 630 mm
Net Volume:
Non Insulated: 1250 lt
Insulated: 1215 lt
Weight (*): 190 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

*Depends on Configuration

Comparison Table of XT Line Desiccant Dry Cabinets

Standard      • Optional      Not Available

U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets
CABINET MODEL Stainless Steel Shelves Dryer Unit Second Dryer Unit Smart N2 Flow Unit Automatic Door Locks RFID Indoor Light Heater Kit 45°C Heater Kit 60°C Heater Kit 100°C Outside Temp. & HMD Sensor
XTC-510-01 Desiccant Dry Cabinet
XTC-510-01
Desiccant Dry Cabinet
10
  XTC-520-01 Desiccant Dry Cabinet
XTC-520-01
Desiccant Dry Cabinet
10
  XTC-510-S1 Desiccant Dry Cabinet
XTC-510-S1
Desiccant Dry Cabinet
10
  XTC-510-S2 Desiccant Dry Cabinet
XTC-510-S2
Desiccant Dry Cabinet
10
  XTC-510-S3 Desiccant Dry Cabinet
XTC-510-S3
Desiccant Dry Cabinet
10
  XTC-510-S4 Desiccant Dry Cabinet
XTC-510-S4
Desiccant Dry Cabinet
10
  XTC-520-S5 Desiccant Dry Cabinet
XTC-520-S5
Desiccant Dry Cabinet
10
  XTC-520-S6 Desiccant Dry Cabinet
XTC-520-S6
Desiccant Dry Cabinet
10
  XTC-520-S7 Desiccant Dry Cabinet
XTC-520-S7
Desiccant Dry Cabinet
10
  XTC-5S0-S8 Desiccant Dry Cabinet
XTC-520-S8
Desiccant Dry Cabinet
10
  XTC-520-S8 Desiccant Dry Cabinet

XT LINE SMART NITROGEN DRY CABINETS

X-Treme Series XT Line Smart Nitrogen Dry Cabinets has been specifically designed for drying and storing moisture sensitive devices (MSDs). According to IPC/JEDEC J-STD 033C ve IPC-1601 standards, moisture-sensitive materials and PCB’s can be stored in these cabinets for an unlimited period of time. XT Line Smart Nitrogen Dry Cabinet is suitable for medium and high-volume production due to cabinet dimensions also it can be used for baking (floor life resetting) purposes with optional heater units up to 100ᵒC degree. It is one of the most used cabinets due to its ergonomic structure and high volume. The XTC-N2 Smart Nitrogen Dry Cabinet is equipped with a smart nitrogen flow unit (N2AF-01). The N2AF-01 nitrogen flow unit guarantees constant low relative humidity ≤1%RH for short to long-term storage. A moisture-free and the oxygen-free environment is provided. Ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies.

X-Treme Series Smart Nitrogen Dry Cabinet keeps the moisture level at desired levels by optimally adjusting the nitrogen gas used thanks to its extensive software and sensitive sensors and saving money by minimizing the consumable usage level. According to process needs, nitrogen gas pressure can be increased, reduced, or nitrogen gas purging settings can be changed on the touch screen control panel to be specially shaped for the system. It provides you with a fully controlled, traceable, reliable environment.

The touch screen control panel provides 800x480px resolution in 7″ touch-capable area. The user can reach all important data in the cabinets with simple clicks. X-Treme Series Auto Dry Cabinets fully network compatible, it can be reached remotely via computers, phones, and tablets which are using Wi-Fi and ethernet connections. The cabinets are equipped with high-precision sensors and integrated data logger for performance traceability.

X-Treme Series Auto Dry Cabinets are ESD Safe and conforms to the current ESD 61340-5-1 standards with optional ESD-safe coating

External Dimensions (WxHxD):
1200 x 1990 x 750 mm
Internal Dimensions (WxHxD):
Non Insulated: 1197 x 1654 x 630 mm
Insulated: 1178 x 1634 x 630 mm
Net Volume:
Non Insulated: 1250 lt
Insulated: 1215 lt
Weight (*): 190 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

*Depends on Configuration

Comparison Table of XT Line Smart Nitrogen Dry Cabinet

Standard      • Optional      Not Available

U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets
CABINET MODEL Stainless Steel Shelves Dryer Unit Second Dryer Unit Smart N2 Flow Unit Automatic Door Locks RFID Indoor Light Heater Kit 45°C Heater Kit 60°C Heater Kit 100°C Outside Temp. & HMD Sensor
XTC-N2 Smart Nitrogen Dry Cabinet
XTC-N2
Smart Nitrogen Dry Cabinet
10

XT LINE HYBRID DRY CABINETS

X-Treme Series XT Line Hybrid Dry Cabinets has been specifically designed for drying and storing moisture sensitive devices (MSDs). According to IPC/JEDEC J-STD 033C ve IPC-1601 standards, moisture-sensitive materials and PCB’s can be stored in these cabinets for an unlimited period of time. XT Line Hybrid Dry Cabinets are equipped both technologies desiccant drying unit (DHM-01) and smart nitrogen flow unit (N2AF-01). The N2AF-01 nitrogen flow unit guarantees constant low relative humidity ≤0.5%RH for short to long-term storage. A moisture-free and the oxygen-free environment is provided. Ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies.

While X-Treme Series Hybrid Dry Cabinet prevents oxidation %100 with its smart nitrogen unit, it also makes the dehumidification process faster and more reliable with the desiccant dry units operating simultaneously. A smart nitrogen unit will continue drying process by taking control when the desiccant dry unit reaches saturation and regenerates itself automatically. In case the nitrogen source is interrupted or if there is a malfunction in any unit, the other unit takes over the control and provides a continuous drying process. For these reasons, they are the most efficient dry and storage solutions that can be used especially in long-term storage and drying processes.

X-Treme Series Hybrid Dry Cabinets optimally adjust the nitrogen gas used thanks to its comprehensive software and sensitive sensors, keeping the humidity level to desired values and saving by minimizing the consumable usage level. Users can increase or decrease nitrogen gas pressure according to process needs or it can be tailored to the process by changing the nitrogen gas injection settings on the touch screen control panel. In this way, the user can decide which unit works how much.

The touch screen control panel provides 800x480px resolution in 7″ touch-capable area. The user can reach all important data in the cabinets with simple clicks. X-Treme Series Auto Dry Cabinets fully network compatible, it can be reached remotely via computers, phones, and tablets which are using Wi-Fi and ethernet connections. The cabinets are equipped with high-precision sensors and integrated data logger for performance traceability.

X-Treme Series Auto Dry Cabinets are ESD Safe and conforms to the current ESD 61340-5-1 standards with optional ESD-safe coating

External Dimensions (WxHxD):
1200 x 1990 x 750 mm
Internal Dimensions (WxHxD):
Non Insulated: 1197 x 1654 x 630 mm
Insulated: 1178 x 1634 x 630 mm
Net Volume:
Non Insulated: 1250 lt
Insulated: 1215 lt
Weight (*): 190 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

*Depends on Configuration

Comparison Table of XT Line Hybrid Dry Cabinets

Standard      • Optional      Not Available

U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets U-Divider-Shelve-Seperator-for-desiccant-dry-cabinets
CABINET MODEL Stainless Steel Shelves Dryer Unit Second Dryer Unit Smart N2 Flow Unit Automatic Door Locks RFID Indoor Light Heater Kit 45°C Heater Kit 60°C Heater Kit 100°C Outside Temp. & HMD Sensor
XTC-510-DN2 Hybrid Dry Cabinet
XTC-510-DN2
Hybrid Dry Cabinet
10
  XTC-520-DN2 Hybrid Dry Cabinet
XTC-520-DN2
Hybrid Dry Cabinet
10

Options & Accessories

Options are valid for all cabinet models

RFID Access

RF-01

PCB Holder

PCB-01

Reel Holder

Stainless Steel (SS) SMD Reel Holder with 20 Divider Wire

Stainless Steel Shelf

Stainless Steel Shelf

Stainless Steel Sliding Shelf

Stainless Steel Sliding Shelf

45 °C Heater Kit

45°C Heater Kit for XS Line, XT Line and XL Line Cabinets

60 °C Heater Kit

60 °C Heater Kit for XS Line, XT Line and XL Line Cabinets

100 °C Heater Kit

100 °C Heater Kit for XS Line, XT Line and XL Line Cabinets

Automatic Door Locks

Automatic Door Locks by Password

Indoor Light

Indoor Light

Shelf Divider

Shelf Divider

Extraction Unit

Extraction Unit

U Divider

Stainless Steel (SS) U Divider for Cabinet Shelves

I Divider

Stainless Steel (SS) I Divider for Cabinet Shelves

Stabilization Legs

Adjustable Stabilization Legs 2 pcs

Outdoor Sensor

Outside Humidity and Temperature Sensor

External Alarm Bar

External Alarm Bar with Magnetic Base, 2-Color Light and Buzzer

N2 Flow Unit

N2 Auto Flow System

Humidifier Unit

HUM-01

Hepa Filter

Hepa Filter Option-Class 1000 (ISO 6)

UV Light

UV-A Type UV Light

Cooling Unit

COAF-01

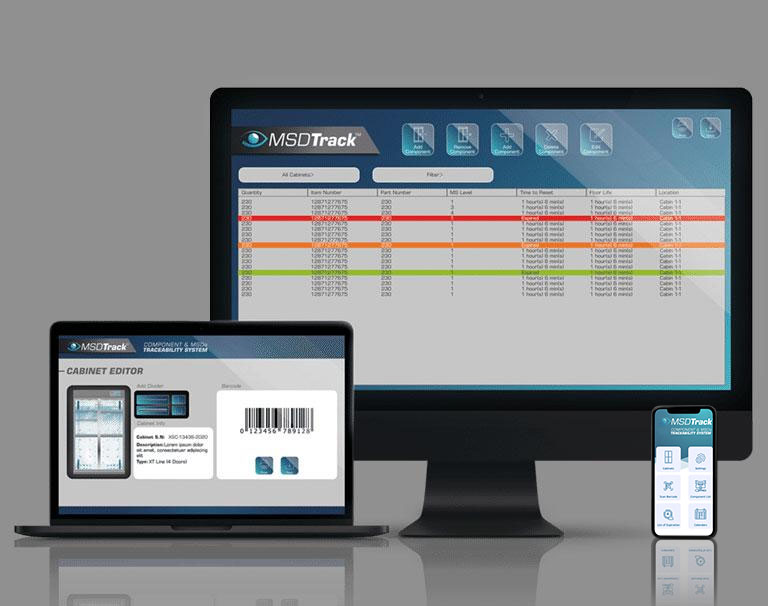

MSD Track Software

MSD (Moisture Sensitive Device) Traceability Software

Version 3.0 Software

Embedded Software Upgrade to Version 3.0 from Version 2.0
